Heschen CXSM 15-20 Dual Rod Air Cylinder, 15mm Bore x 20mm Stroke, Guided Pneumatic Actuator with Magnet, Double Acting Slide Bearing, M5x0.8 Port, Industrial Automation Replacement
Product details
| Management number | 221607983 | Release Date | 2026/05/03 | List Price | US$7.60 | Model Number | 221607983 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [High Precision Dual-Rod Structure] The dual-rod design with an integrated guide plate provides twice the output thrust compared to single-rod cylinders. Engineered with precision slide bearings (M type), it delivers an exceptional non-rotating accuracy of ±0.1° , preventing the 8mm piston rods from twisting throughout the entire stroke
- [Rugged Industrial Construction] Crafted from high-strength aluminum, this cylinder offers superior wear and corrosion resistance. It features an optimal working pressure range of 0.1 to 0.8 MPa (approx. 15-116 PSI), ensuring smooth and reliable operation in heavy-duty automated machinery over a wide temperature range of 5 to 60°C
- [Versatile 4-Way Mounting] Designed for maximum flexibility, the cylinder body can be fixed with bolts in 4 different directions to suit tight machine spaces. Equipped with a standard M5x0.8 air port, it serves as a seamless drop-in replacement for standard CXSM series actuators
- [Smooth Motion & Adjustable Stroke] Equipped with built-in rubber cushions at both ends to effectively absorb impact and reduce operating noise during high-speed cycles. Additionally, it features a convenient retract stroke adjustment range of 0 to 6mm, allowing for precise mechanical fine-tuning

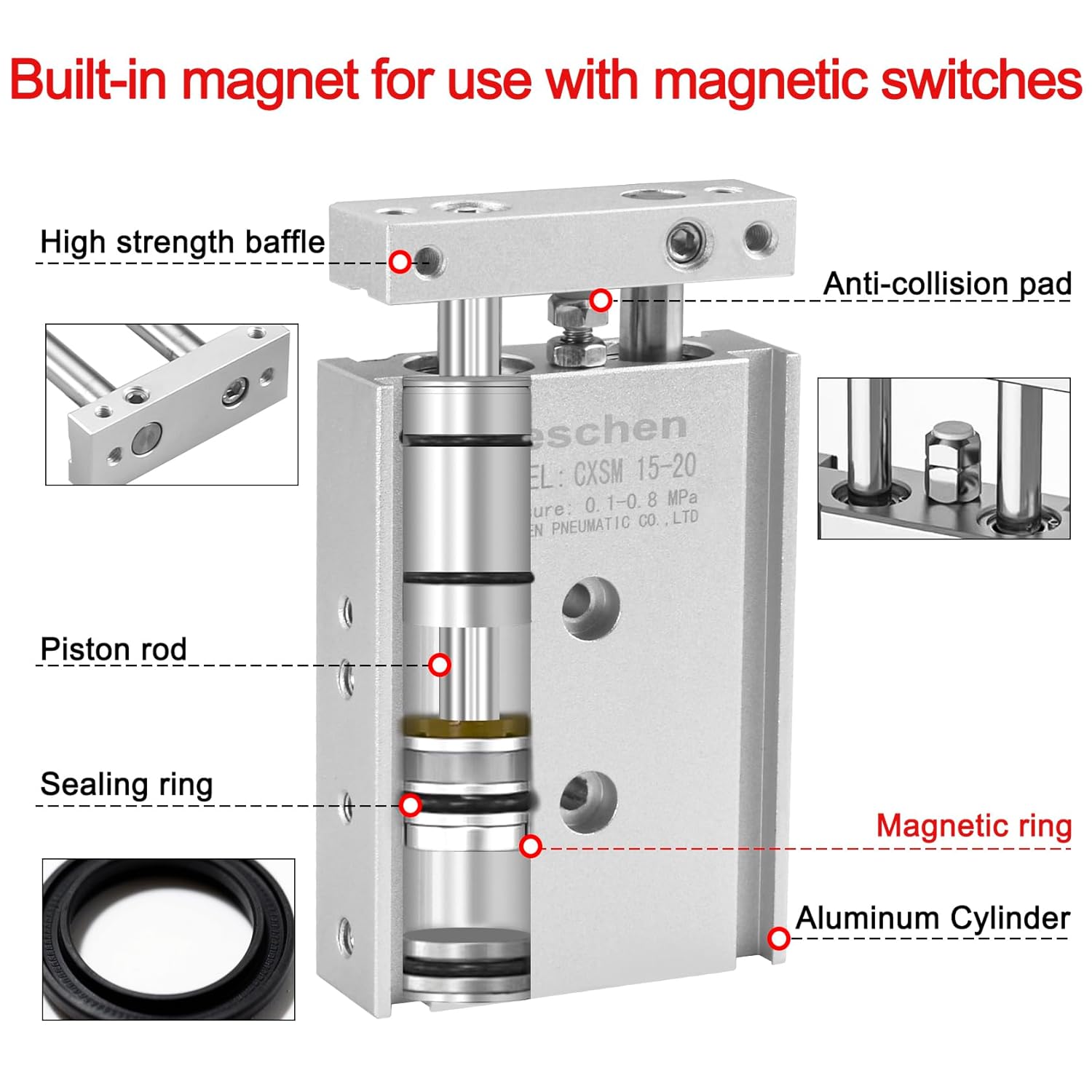

- [Position Sensing Ready] Includes a built-in magnetic ring for reliable position feedback. It is perfectly compatible with standard magnetic switches such as the D-Z76L, enabling precise synchronization with your PLC systems
| Item Weight | 14 ounces |
|---|---|
| Manufacturer | Heschen Pneumatic Co.Ltd |
| Item model number | CXSM 15-20 |
| Product Dimensions | 3.9 x 2.2 x 0.79 inches |
| Is Discontinued By Manufacturer | No |
